* Intelligent planning path, memory family layout, cleaning every corner.
* According to the two-dimensional map scanned by the LDS laser sensor
* Vision sensors for better resolution of home scenes. AI image recognition.
* Mihome APP WIFI connect, Timing boot, Automatic Cleaning for Home and Office, Automatic charging.
* 2000PA large suction, brushless motor, the noise is less than 55db.
* 5200mAH Long-life Li-Battery, it can cleaning 250 square meters of the environment, Automatic recharge .
* 96mm Slim design enable this Robot Vacuum Cleaner working in the narrow space.
Detailed parameters

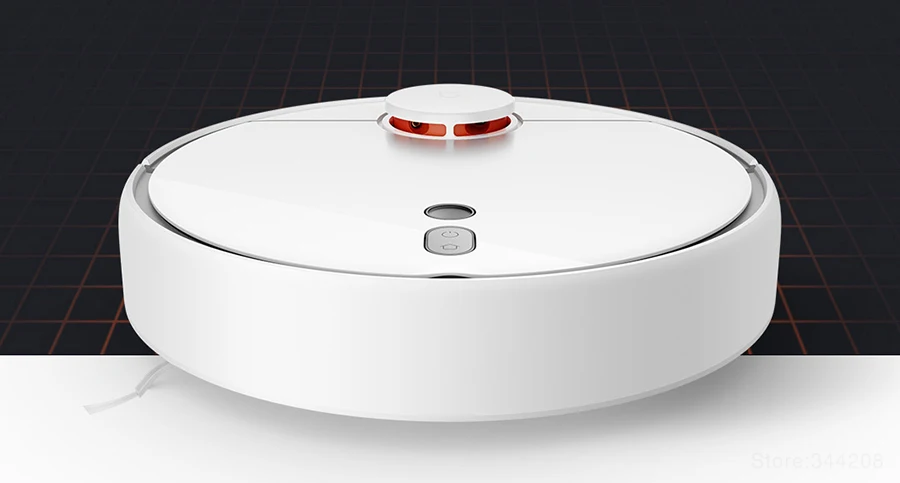

Xiaomi Mijia robot 1s
My new changes are faster and stronger.
Dual navigation configuration, the route is more intelligent, and the cleaning is more thorough.
Laser navigation + visual navigation | AI image configuration, assisted to divide the area,
better cope with various environments, 2000pa large suction.
Smarter + More powerful + More convenient
LDS laser + visual fusion navigation.
Dual SLAM fusion algorithm, real-time intelligent path planning.
Improved processor performance, 2000Pa high suction, 5200mAh large capacity battery.
Mobile app control, intelligent voice assistant interaction.
Industry innovation, dual navigation system.
According to the two-dimensional map scanned by the LDS laser sensor,
combined with the image features scanned by the visual sensor,
the collected data is fused and matched to improve the integrity and stability of the map.
High precision laser Ranging sensor
The LDS laser ranging sensor is my eye, which scans the room at 5×360°/seconds to get distance information.
When the laser is projected onto the barrier, a spot is formed in my eyes.
At the same time, the image sensor will calculate the center distance of the laser ranging sensor according to the pixel serial number of the spot.
Vision sensors for better resolution of home scenes.
The new high-definition vision sensor is equipped with a high-hardness scratch-resistant glass lens on the outer layer. Even when the robot moves, it can be shot and the image is clear and stable. Tookfun.
Laser SLAM+Visual SLAM Fusion Algorithm
After being moved in time, it can still continue cleaning and intelligently analyze missing areas.
AI image recognition, I can accurately determine the position of the room door
Through AI image recognition, I can accurately identify the characteristics of the room door,
determine the “coordinate of the room door” by calculation, and automatically realize the room partition setting.
For the generated image, it will be automatically destroyed after the test, to protect your privacy.
Automatic room partitioning， I will remember both the bedroom and the living room.
After the first cleaning is completed, the map is partitioned and saved in units of rooms.
You can “merge”, “split” and “name” operations on maps that have already been divided. In the subsequent cleaning,
I will use this as a basis for better cleaning.
Dynamic intelligent planning of the path, saving time and saving energy.
When cleaning, I will carry out rigorous cleaning according to the map of the already divided area,
adopt dynamic intelligent planning path, clean each room one by one, there will be no cross-region cleaning phenomenon,
reduce unnecessary turning times, increase efficiency, compare the previous generation, Cleaning efficiency increased by 13%.
Automatic recharge and resume Cleaning.
I scanned and positioned the charger seat through my own laser ranging sensor to identify its location on the map.
When the room is completely cleared, I will automatically plan the shortest route back to recharge the charger seat.
In the cleaning on the way, if the electricity is below 20%, I can automatically return to recharge the charger,
when the power charge to 80%, I will return to the last unfinished location to continue sweeping, to avoid repeated cleaning.
Don’t worry, your privacy is safe.
Only the feature information of the image is extracted.Information will not be saved,
and will not be uploaded to the network.Destroyed after use, cannot be recovered after destruction.
Strong body, I can face more challenges

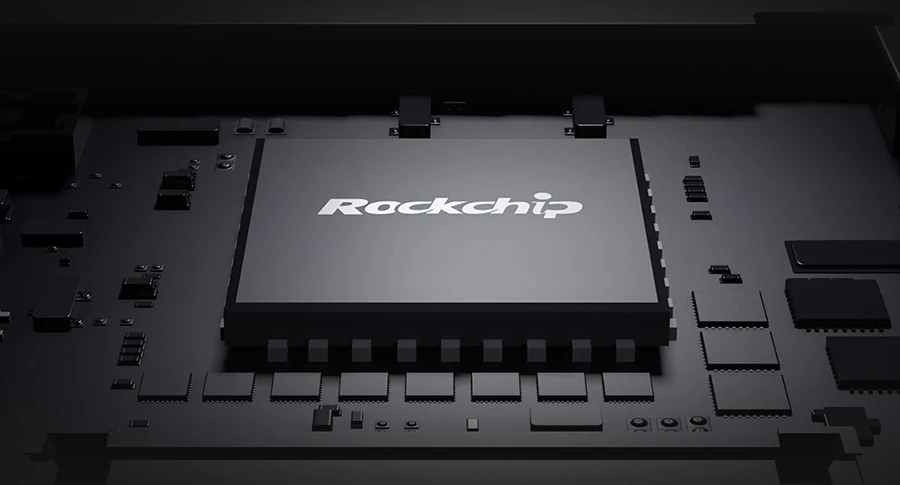

Processor upgrade, cleaning efficiency is once again improved.
From the previous generation quad-core Conrtex-A7 to the quad-core Conrtex-A35 processor,
compared to the previous generation, the energy consumption is 10% lower, the performance is improved by 40%,
and the cleaning efficiency is significantly improved.

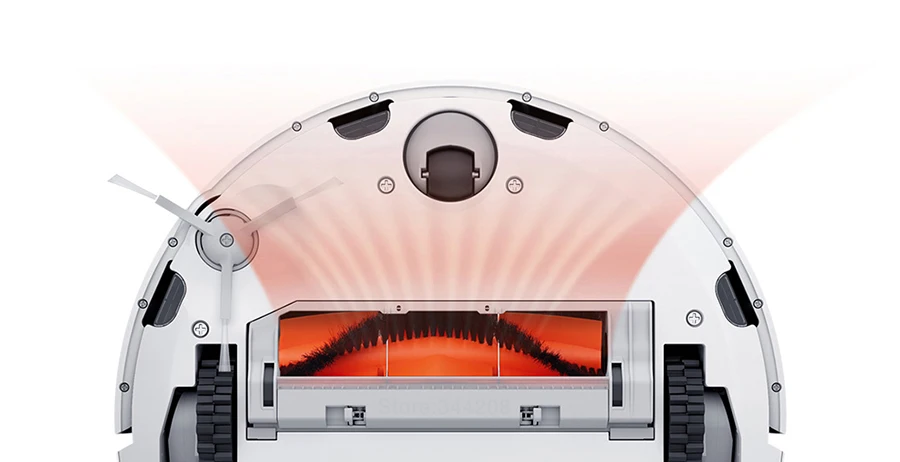

2000PA super suction, dust can not be hidden.
After upgrading the vacuuming ability, you can further clean the ground dust and floor gap dust and dust in the carpet,
all kinds of dust and impurities, all solved.
Double virtual wall design, any combination, more convenient.
Upgrade to a dual-electronic compass sensor to accurately identify the physical version of the virtual wall
and the software version of the virtual wall. You can divide the area better and make it more flexible.
Powerful battery
LG/Panasonic high energy density of 18650 lithium ion batteries, capacity of 5200mAh, the standard mode of a single maximum life time of about 2.5 hours the largest cleaning area of about 250 square meters *, the special design of constant current voltage charging mechanism, can ensure that the battery in a specific DoD (discharge depth) of the cycle life of up to 2 years, at the same time with automatic recharge of the intimate function, can meet the needs of different areas of household cleaning.
We offer the battery to buy the address in the future. Tookfun.

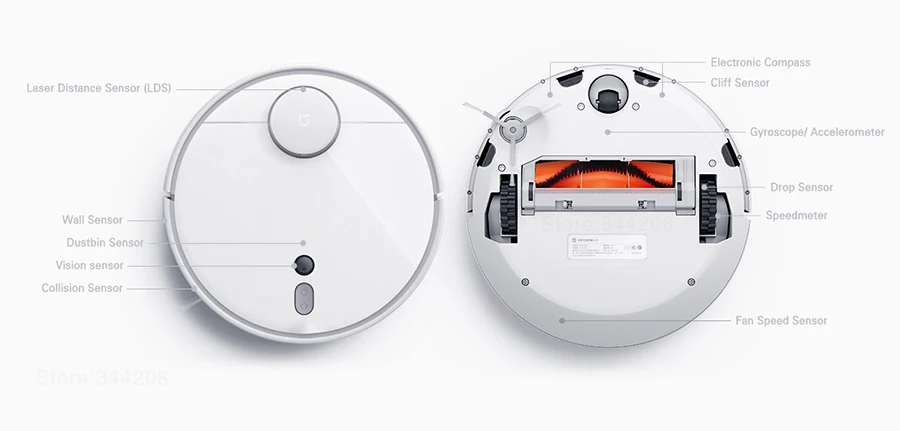

12 categories of omnidirectional sensors.
The entire body is equipped with 12 types of omni-directional sensors, which can adapt to a variety of complex environments.
Robots can not only protect themselves, but also protect furniture.
Mihome APP Intelligent Remote Control
View maps in real time, select cleaning areas, timed cleaning areas, online firmware upgrades.
Open the Mihome app, and you can check the sweep status in real time and get a real-time map of the cleanup. In addition,
you can always arrange my clean-up tasks, before work to set a good daily cleaning time,
home after work can feel clean ground bring happiness. Cleaning, there are quiet, standard,
strong three kinds of sweeping mode can be switched.
Detailed parameters
Brand Model
XIAOMI ROBOT 1S
Release Date
2019
Size
35*35*9.6cm
Color
White
Dust box volume
420ML
Water tank capacity
NO
Filter
Primary filter + HEPA filter
Motor
Brushless motor
Detection system
OBS all floor detection system
Suction Nozzle
V – Shape Rolling Brush & suction
Working Parameters
Battery
5200mAh (Li-ion 14.4V/58W)
Working time
About 120-150min
Scope of work
≤250m⊃2;
Charging time
4-5 hours
Working noise
≤50-55dB
Suction strength
2000Pa
Other functions
Cleaning Route
Planned Type
Automatic Recharge
Yes
Timing Reservation
Yes
Remote Control
Yes
Memory environment
Yes
Air filtration
Yes
Anti Collision
Yes
Anti Falling
Yes
Wet mop
Yes
LCD
No
Gyroscope
Yes
